Описание

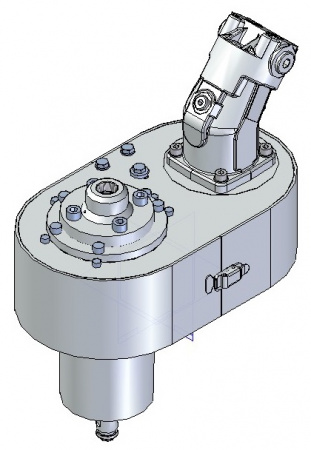

Гидравлический привод вращения высокого давления 3000 бар
00.00124.0198
pressure: 3000 bar (water)
Max. flow rate: 40 l/min.
Internal bore: 2.5 mm i/d
Max. rotation speed: 3000 min-1
Max. oil pressure: 250 bar
Max. torque: 25 Nm
Oil flow rate: 18 l/min at 3000 min-1
Oil volume per rev.: 6 cm3
Max. motor power: 6 kW
Max. working width: 500 mm o/d
Weight: 9.5 kg
Connections:
High pressure water connection thread: M 26 x 1.5 female
Hollow shaft connection: 24 mm o/d system: seal lens / nozzle holder
Oil line connecton threads (input / return): M 18 x 1.5
Dimensions: 304 mm long, Housing: 80 x 80 mm
00.00124.0201
pressure: 3000 bar (water)
Max. flow rate: 40 l/min.
Internal bore: 2.5 mm i/d
Max. rotation speed: 3000 min-1
Max. oil pressure: 250 bar
Max. torque: 40 Nm
Oil flow rate: 30 l/min at 3000 min-1
Oil volume per rev.: 10 cm3
Max. motor power: 10 kW
Max. working width: 500 mm o/d
Weight: 9.8 kg
Connections:
High pressure water connection thread: M 26 x 1.5 female
Hollow shaft connection: 24 mm o/d system: seal lens / nozzle holder
Oil line connecton threads (input / return): M 18 x 1.5
Dimensions: 304 mm long, Housing: 80 x 80 mm
00.00124.0329*
Max. operating
pressure: 3000 bar (water)
Max. flow rate: 50 l/min (Δp = 10 bar)
Internal bore: 2.5 mm i/d
Max. rotation speed: 2000 min-1
Required operating pressure: 150 bar
Max. working width: 860 mm o/d
Weight: 55 kg (incl. motor)
Dimensions housing: 850 x 361 x 341 mm
Connections:
High pressure water connection thread:
M 26 x 1.5 female / M 14 x 1.5 LH
Hollow shaft connection: 24 mm o/d
Hydraulic motor 04.02769.0059
Oil line connection threads (input/return): M 22 x 1.5
Oil volume per rev.: 16 cm3

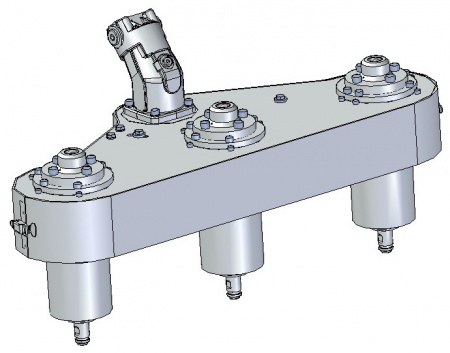

00.00124.0347*
Max. operating
pressure: 3000 bar (water)
Max. flow rate: 50 l/min (Δp = 10 bar)
Internal bore: 2.5 mm i/d
Max. rotation speed: 2000 min-1
Required operating pressure: 150 bar
Max. working width: 1506 mm o/d
Weight: 65 kg (incl. motor)
Dimensions housing: 1290 x 361 x 341 mm
Connections:
High pressure water connection thread:
M 26 x 1.5 female / M 14 x 1.5 LH
Hollow shaft connection: 24 mm o/d
Hydraulic motor 04.02769.0059
Oil line connection threads (input/return): M 22 x 1.5
Oil volume per rev.: 16 cm3
