Описание

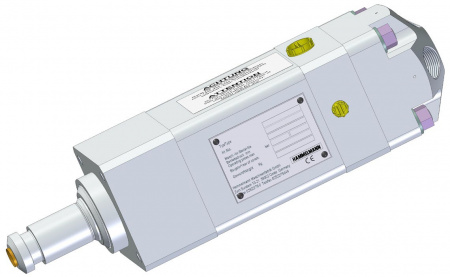

Гидравлический привод вращения высокого давления 2500 бар
00.00124.0085
Max. operating pressure: 2500 bar (water)
Max. rotation speed: 50 - 3000 min-1
Max. flow rate: 100 l/min (Δp = 10 bar)
Internal bore: 8 mm i/d
Max. oil pressure: 250 bar
Max. torque: 55 Nm
Oil flow rate: 16 l/min at 1000 min-1
Oil volume per rev.: 16 cm3
Max. motor power: 10 kW
Max. working width: 1000 mm o/d
(refer to performance diagram 00.00765.0009)
Connections:
High pressure water connection thread: 4 x M 30 x 2 i
Hollow shaft connection: 59 mm o/d System: seal lens / nozzle holder
Oil line connection threads (input/return): M 18 x 1.5
Weight: 46 kg
Dimensions: 529 mm long Flange: 220 mm o/d Housing: dia. 160 mm
00.00124.0231
Max. operating pressure: 2500 bar (water)
Max. rotation speed: 3000 min-1
Max. flow rate: 65 l/min (Δp = 10 bar)
Internal bore: 6 mm i/d
Max. oil pressure: 250 bar
Max. torque: 55 Nm
Oil flow rate: 16 l/min at 1000 min-1
Oil volume per rev.: 16 cm3
Max. motor power: 10 kW
Max. working width: 750 mm o/d
(refer to performance diagram 00.00765.0009)
Connections:
High pressure water connection thread: 4 x M 30 x 2 i
Hollow shaft connection: 35.5 mm o/d System: seal lens / nozzle holder
Oil line connection threads (input/return): M 18 x 1.5
Weight: 19.1 kg
Dimensions: 402 mm long Housing: 102 x 102 mm
00.00124.0085
Max. operating pressure: 2500 bar (water)
Max. rotation speed: 50 - 3000 min-1
Max. flow rate: 100 l/min (Δp = 10 bar)
Internal bore: 8 mm i/d
Max. oil pressure: 250 bar
Max. torque: 55 Nm
Oil flow rate: 16 l/min at 1000 min-1
Oil volume per rev.: 16 cm3
Max. motor power: 10 kW
Max. working width: 1000 mm o/d
(refer to performance diagram 00.00765.0009)
Connections:
High pressure water connection thread: 4 x M 30 x 2 i
Hollow shaft connection: 59 mm o/d System: seal lens / nozzle holder
Oil line connection threads (input/return): M 18 x 1.5
Weight: 46 kg
Dimensions: 529 mm long Flange: 220 mm o/d Housing: dia. 160 mm
00.00124.0231
Max. operating pressure: 2500 bar (water)
Max. rotation speed: 3000 min-1
Max. flow rate: 65 l/min (Δp = 10 bar)
Internal bore: 6 mm i/d
Max. oil pressure: 250 bar
Max. torque: 55 Nm
Oil flow rate: 16 l/min at 1000 min-1
Oil volume per rev.: 16 cm3
Max. motor power: 10 kW
Max. working width: 750 mm o/d
(refer to performance diagram 00.00765.0009)
Connections:
High pressure water connection thread: 4 x M 30 x 2 i
Hollow shaft connection: 35.5 mm o/d System: seal lens / nozzle holder
Oil line connection threads (input/return): M 18 x 1.5
Weight: 19.1 kg
Dimensions: 402 mm long Housing: 102 x 102 mm
