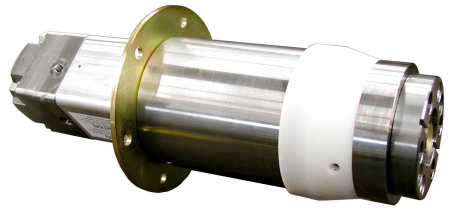

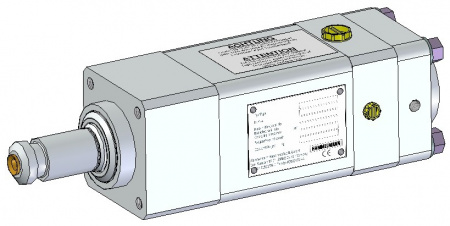

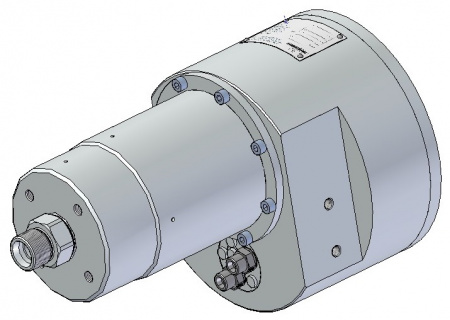

Гидравлический привод вращения высокого давления 1500 бар
00.00124.0206
Max. operating
pressure: 1500 bar
Max. rotation speed: 3000 min-1
Max. flow rate: 100 l/min (Δp = 6 bar)
Nominal diameter: i/d 6 mm
Max. oil pressure: 250 bar
Max. torque: 25 Nm
Oil flow rate: 18 l/min at 3000 min-1
Oil volume per rev.: 6 cm3
Max. motor power: 6 kW
Max. working width: o/d 500 mm
Weight: approx. 8.0 kg
(refer to performance diagram 00.00765.0009)
Connections:
High pressure water connection thread: M 30 x 2 i
Hollow shaft connection: o/d 24 mm system: seal lens/nozzle holder
Oil line connection threads (input/return): M 18 x 1.5
Dimensions: 252 mm long Housing: 80 x 80 mm
00.00124.0230
Max. operating
pressure: 1500 bar
Max. rotation speed: 3000 min-1
Max. flow rate: 100 l/min (Δp = 6 bar)
Nominal diameter: i/d 6 mm
Max. oil pressure: 250 bar
Max. torque: 40 Nm
Oil flow rate: 30 l/min at 3000 min-1
Oil volume per rev.: 10 cm3
Max. motor power: 10 kW
Max. working width: o/d 500 mm
Weight: approx. 8.0 kg
(refer to performance diagram 00.00765.0009)
Connections:
High pressure water connection thread: M 30 x 2 i
Hollow shaft connection: o/d 24 mm system: seal lens/nozzle holder
Oil line connection threads (input/return): M 18 x 1.5
Dimensions: 252 mm long Housing: 80 x 80 mm
00.00124.0154
Operating pressure max.: 1500 bar (water)
Rotation speed max.: 25 - 300 min-1
Flow rate max.: 500 l/min (Δp = 10 bar)
Nominal diameter: i/d 15 mm
Oil pressure max.: 100 bar
Torque max.: 80 Nm
Oil flow rate: approx. 20 l/min at 300 min-1
Oil volume per rev.: 66 cm3
Motor power max.: 2.4 kW
Working width max.: o/d 1000 mm
Connections:
High pressure water connection thread: M 36 x 2 DKO-S
Hollow shaft connection: o/d 59 mm (with flange)
Oil line connection threads (input/return): M 18 x 1.5
Dimensions: 432 mm long o/d 250 mm
Weight: 53.7 kg
00.00124.0172
Operating pressure max.: 1500 bar (water)
Rotation speed max.: 50 - 3000 min-1
Flow rate max.: 65 l/min (Δp = 10 bar)
Nominal diameter: i/d 5 mm
Oil pressure max.: 250 bar
Torque max.: 55 Nm
Oil flow rate: 16 l/min at 1000 min-1
Oil volume per rev.: 16 cm3
Motor power max.: 10 kW
Working width max.: o/d 750 mm
Connections:
High pressure water connection thread: M 33 x 2 i
Hollow shaft connection: o/d 35.5 mm (system: seal lens / nozzle holder)
Oil line connection threads (input/return): M 18 x 1.5
Dimensions: 371 mm long Housing: 102 x 102 mm
Weight: 22.9 kg
08.00536.0005
Operating pressure max.: 1500 bar (water)
Rotation speed max.: 50 - 3000 min-1
Flow rate max.: 180 l/min (Δp = 10 bar)
Nominal diameter: i/d 10 mm
Oil pressure max.: 250 bar
Torque max.: 55 Nm
Oil flow rate: 16 l/min at 1000 min-1
Oil volume per rev.: 16 cm3
Motor power max.: 10 kW
Working width max.: o/d 1000 mm
Connections:
High pressure water connection thread: M 33 x 2 i
Hollow shaft connection: o/d 59 mm (system: seal lens / nozzle holder)
Oil line connection threads (input/return): M 18 x 1.5
Dimensions: 499 mm long Flange: Ø 220 mm Housing: Ø 160 mm
Weight: 40.0 kg
