Описание

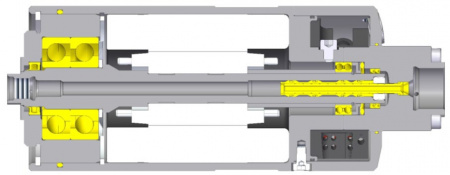

Электрический привод вращения высокого давления 4000 бар
Присоединения: сальниковый ввод кабеля.
Op. pressure: max. 4000 bar / min. 300 bar
Nominal dia.: Ø 2.5 mm
Volume flow: max. 30 l/min
Working width: max. 100 mm
according to layout diagram 00.00765.0010
Dimensions
Length: 298 mm
Diameter: 100 mm
HP medium: according to HAMMELMANN data sheet: Water quality for high pressure pumps
Leakage: 0.2 - 0.6 l/min (when new) / max. 2.0 l/min (during operation)
Air barrier
pressure: 0.5 - 1.0 bar
Air barrier
connection: G ⅛“
Purity class: according to ISO 8573-1: 2010 [5 : 4 : 3]
HP connections
Stationary: M 26 x 1.5
For HP tools: M 14 x 1.5 LH
1450 min-1
00.00124.0254 Cable (Ø cable = max. 13 mm)
Type: IEC63/4 (4-pole)
Power: 0.20 kW
Rotation speed: 1450 min-1
Voltage: 3 x 400 V Y
Nominal rated current: 0.600 A
Frequency: 50 Hz
Protection class: IP 67
ISO class: F
Winding: suitable for frequency converter
Frequency: 8 kHz (with sine filter)
Ambient temperature: 40 °C
1450 min-1
00.00124.0249 Cable (Ø cable = max. 13 mm)
Type: IEC63/2 (2-pole)
Power: 0.30 kW
Rotation speed: 2840 min-1
Voltage: 3 x 400 V Y
Nominal rated current: 0.700 A
Frequency: 50 Hz
Protection class: IP 67
ISO class: F
Winding: suitable for frequency converter
Frequency: 8 kHz (with sine filter)
Ambient temperature: 40 °C
