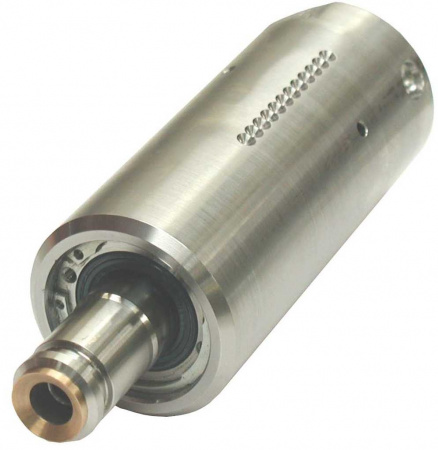

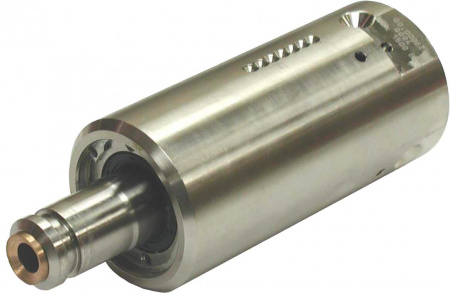

Поворотное соединение 3000 бар
00.00062.0134
Operating pressure max.: 3000 bar
Rotation speed max.: 3000 min-1
Flow rate: 15 l/min (Δp=10 bar)
Nominal diameter: i/d 3 mm
Leakage: 0.2 l/min
High pressure water
connection: M 14 x 1.5 LH
Hollow shaft connection: M 14 x 1.5 LH
Dimensions:
131 mm long
o/d 59 mm
Weight: 1.0 kg
00.00062.0175
Operating pressure max.: 3000 bar
Rotation speed max.:: 3000 min-1
Flow rate: 15 l/min (Δp=10 bar)
Nominal diameter: i/d 2.5 mm
Leakage: 0.2 l/min
High pressure water
connection: M 30 x 2
Hollow shaft connection: Ø 24 mm
Dimensions:
173 mm long
o/d 60 mm
Weight: 2.2 kg
00.00062.0131
Operating pressure max.: 3000 bar
Rotation speed max.: 3000 min-1
Flow rate: 45 l/min bei Δp=10 bar
Nominal diameter: i/d 5 mm
Leakage: 2.0 l/min
High pressure water
connection: M 30 x 2
Hollow shaft connection: Ø 35.5 mm
Dimensions: 294 mm long
o/d 95 mm
Weight: 9.9 kg
