Описание

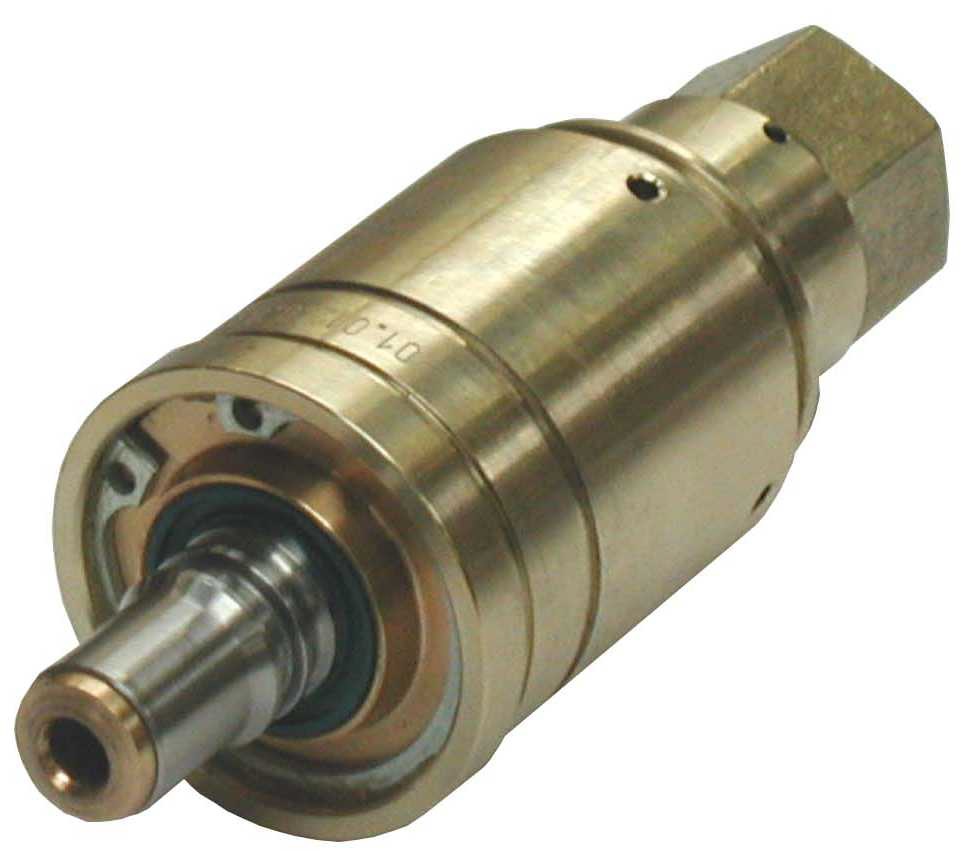

Поворотное соединение 1600 бар
00.00062.0111
Operating pressure max.: 1600 bar
Rotation speed max.: 2000 min-1
Flow rate: 400 l/min (Δp=10 bar)
Nominal diameter: i/d 15 mm
Leakage: 2.0 l/min
High pressure water
connection thread: M 36 x 2 DKO
Hollow shaft connection: Ø 59 mm
Dimensions:
430 mm long
o/d 150 mm
Weight: 31.0 kg
00.00062.0122
Operating pressure max.: 1600 bar
Rotation speed max.: 3000 min-1
Flow rate: 30 l/min (Δp=10 bar)
Nominal diameter: i/d 4 mm
Leakage: 0.6 l/min
High pressure water
connection: M 14 x 1.5 LH
Hollow shaft connection: Ø 13 mm
Dimensions:
112 mm long
o/d 40 mm
Weight: 0.5 kg
