Описание
Поворотное соединение 1000 бар

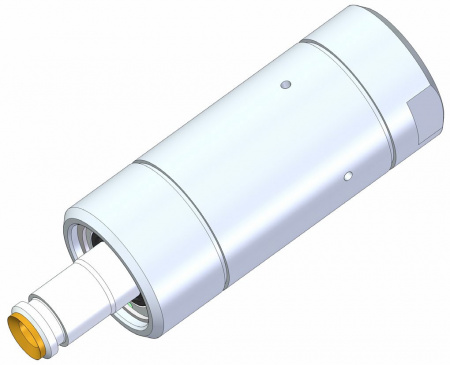

00.00062.0107
Operating pressure max.: 1000 bar
Rotation speed max.: 3000 min-1
Flow rate: 25 l/min (Δp=10 bar)
Nominal diameter: i/d 3.5 mm
Leakage: 0.5 l/min
High pressure connection
thread: G ⅜“
Hollow shaft connection: Ø 13 mm
Dimensions:
107 mm long
o/d 39 mm
Weight: 0.5 kg

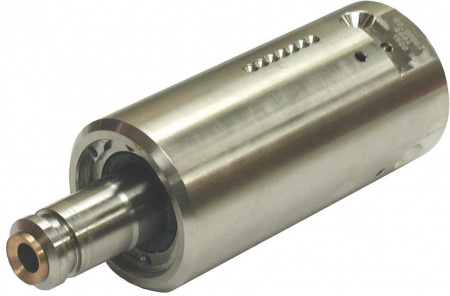

00.00062.0096
Operating pressure max.: 1000 bar
Rotation speed max.: 3000 min-1
Flow rate: 120 l/min (Δp=10 bar)
Nominal diameter: i/d 8 mm
Leakage: 1.0 l/min
High pressure connection
thread: M 33 x 2
Hollow shaft connection: Ø 24 mm
Dimensions:
187 mm lang
o/d 60 mm
Weight: 2.6 kg
00.00062.0140
Operating pressure max.: 1000 bar
Rotation speed max.: 3000 min-1
Flow rate: 65 l/min (Δp=10 bar)
Nominal diameter: i/d 6 mm
High pressure water
connection thread: M 30 x 2
Hollow shaft connection: Ø 24 mm
Dimensions:
173 mm long
o/d 60 mm
Weight: 2.2 kg

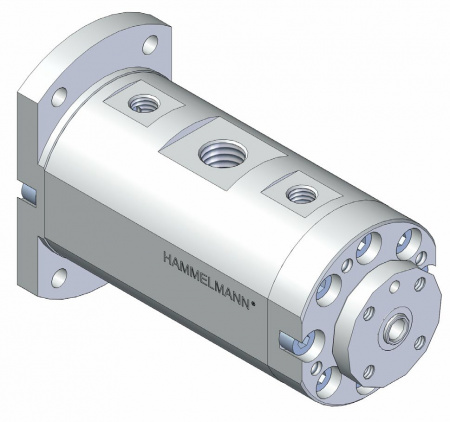

00.00062.0141
Operating pressure max.: 1000 bar 750 bar 500 bar
Rotation speed max.: 500 min-1 800 min-1 1200 min-1
Flow rate: 180 l/min (Δp=10 bar)
Nominal diameter: i/d 10 mm
High pressure water
connection: 4 x M 8, Ø 42 mm
High pressure water
connection thread: G ½“
Shaft connection
(drive with key) o/d 16 mm
Dimensions:
220 mm long
Flange: 125 x 85 mm
Housing: Ø 85 mm
00.00062.0198
Operating pressure max.: 1000 bar 750 bar 500 bar
Rotation speed max.: 500 min-1 800 min-1 1200 min-1
Flow rate: 180 l/min (Δp=10 bar)
Nominal diameter: i/d 10 mm
High pressure water
tool flange connection: Ø 24 mm
High pressure water
connection thread: G ½“
Shaft connection
(drive with key): o/d 16 mm
Dimensions
225 mm long
Flange: 125 x 85 mm
Housing: Ø 85 mm
Weight: 6.8 kg

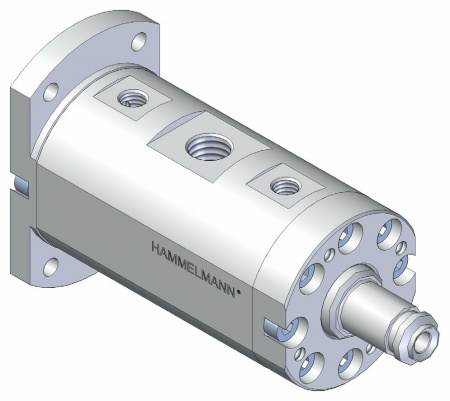

00.00062.0153
Operating pressure max.: 1000 bar 750 bar 500 bar
Rotation speed max.: 500 min-1 800 min-1 1200 min-1
Flow rate: 180 l/min (Δp=10 bar)
Nominal diameter: i/d 10 mm
High pressure water
connection: 4 x M 8, Ø 42 mm
High pressure water
connection thread: G ½“
Shaft connection
(drive with key): o/d 25 mm
Dimensions:
220 mm long
Flange: 125 x 85 mm
Housing: Ø 85 mm
Weight: 6.8 kg
